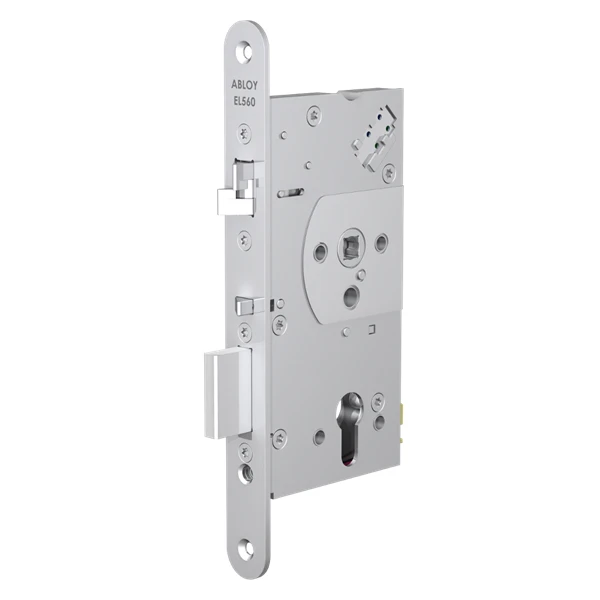

ABLOY Electric Mortice Lock – EL560

ABLOY EL560 Mortice Electric Lock for Metal and Wooden Doors

• Handle on both sides of the door is electronically controlled by the access control system
• Can be fitted to metal and wooden doors
• Not suitable to be fitted on doors with with door automatics
• Suitable for medium to high traffic doors
• Can be used with fire rated doors
• Meets EN179 for emergency exit doors
• EN1634-1 for fire resistance when used with correct exit hardware



Product Specifications
Operation	Fail Locked / Fail Unlocked – Site Reversible
Application	Metal & Timber Doors
Current Consumption	0.55A @ 12V DC / 0.27A @ 24V DC
Fitting	Mortice
Finish	Satin Stainless Steel
Weight	1.35Kg
Barcode	6416495228890
Brand	Abloy Security
Guarantee	2 Year
Manufacturer Reference	EL560
Input Voltage	12/24V DC
Key Override	Yes (Cylinder Purchased Separately)



Product Dimensions
Faceplate Width	24mm
Faceplate Height	235mm
Backset	65mm
Body Width	16.5mm
Body Height	168.5mm
Body Depth	98mm
