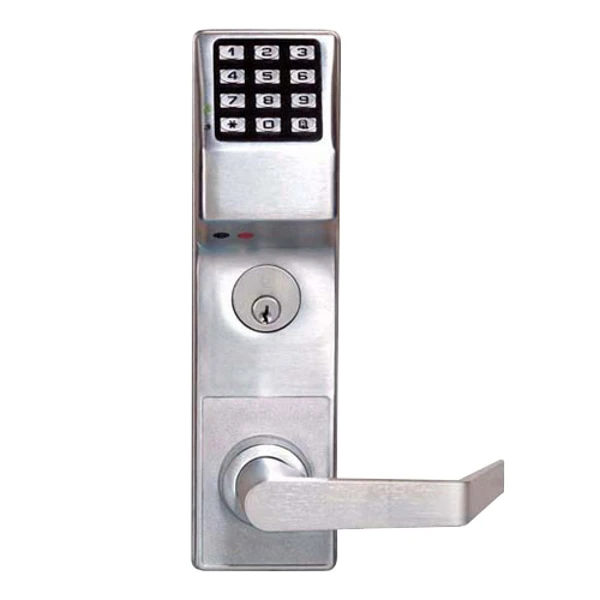

Alarm Lock Trilogy Digital Lock Battery Operated – DL3500

The DL3500 from Alarm Locks as part of their Trilogy Range of Access Control Locks is battery operated for easy fitting to a door where mains power is not available.  The DL3500 can be retro fitted to existing doors and suits a DIN Standard Lock Case, which will need to be ordered separately.  The S6065 long life battery can last for up to 80,000 operations so this really is a low maintenance access control lock.  For accurate auditing, the DL3500 has 1 second access tracking and can store up to 40,000 movements.  If you are looking for easy to use and simple to install access control on a remote door, then the Dl3500 Trilogy from Alarm Lock is perfect!

• Key Override – Euro Cylinder needs to be purchased separatley
• Long Life Battery Operated
• 40,000 Audi Trail
• Real Time Clock with 1 second accuracy
• Can be retrofitted to doors
• Weatherproof
• Can be fitted to left and right hand doors
• For DIN Standard Locks – Not supplied

Product Specifications
Operating Temperature	-29°C to 66°C
Packaging	Boxed
Passage Set	Yes
Audit Trail	40,000 events (additional parts required to retrieve the information)
Code Length	3 To 6 Digits
Finish	Satin Chrome
Brand	Alarm Lock
Battery Life	80,000 Operations
Battery	S6065 Battery Pack
Barcode	5055120785431
Manufacturer Reference	DL3500 – 26DEX
Handed	Reversible
Guarantee	2 Year
Keys Supplied	2
Key Override	Yes (Cylinder Purchased Separately)



Product Dimensions
Width	75mm
Door Thickness	35mm to 47mm
Height	275mm
