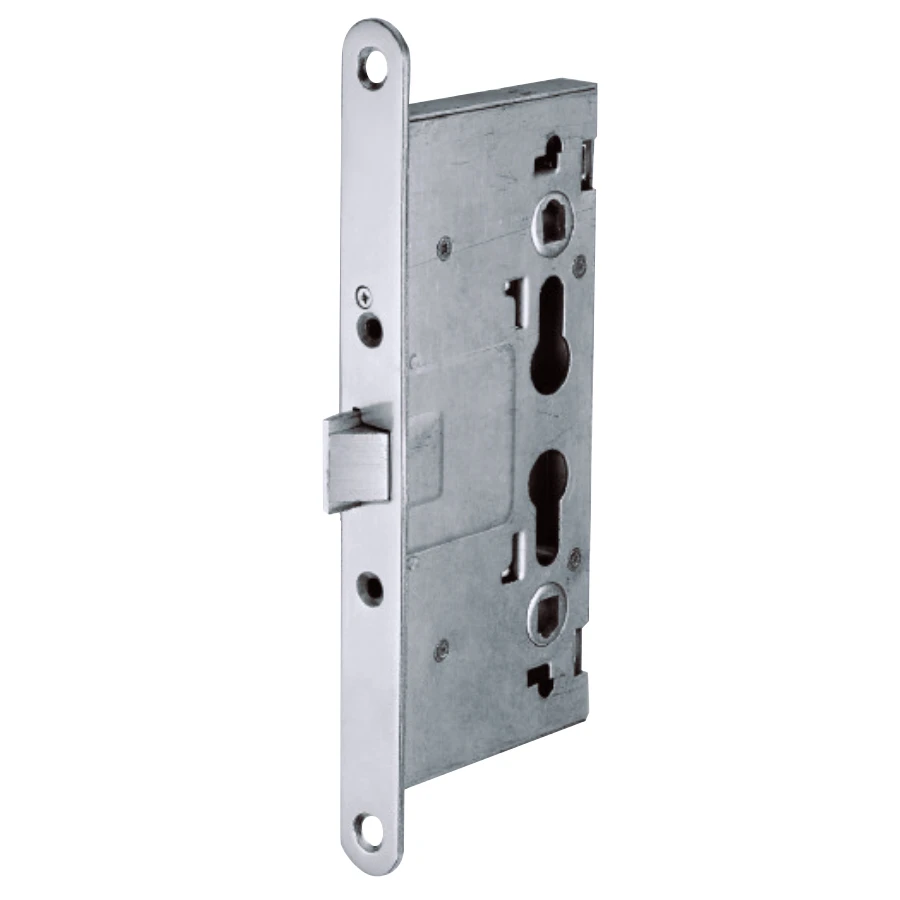

Asec Double Euro Centre Latch Case For Garage Doors

Full reversible garage latch bolt that is operated by euro cylinder.  This garage lock case from Asec Security has a single spindle and adjustable screw, the lock case can be easily reversed for left or right hand opening by simply flipping the lock case.

• Fully reversible garage door latch
• Suitable got garage doors
• 65mm backset
• 72mm centres
• latchbolt is operated to key and handle

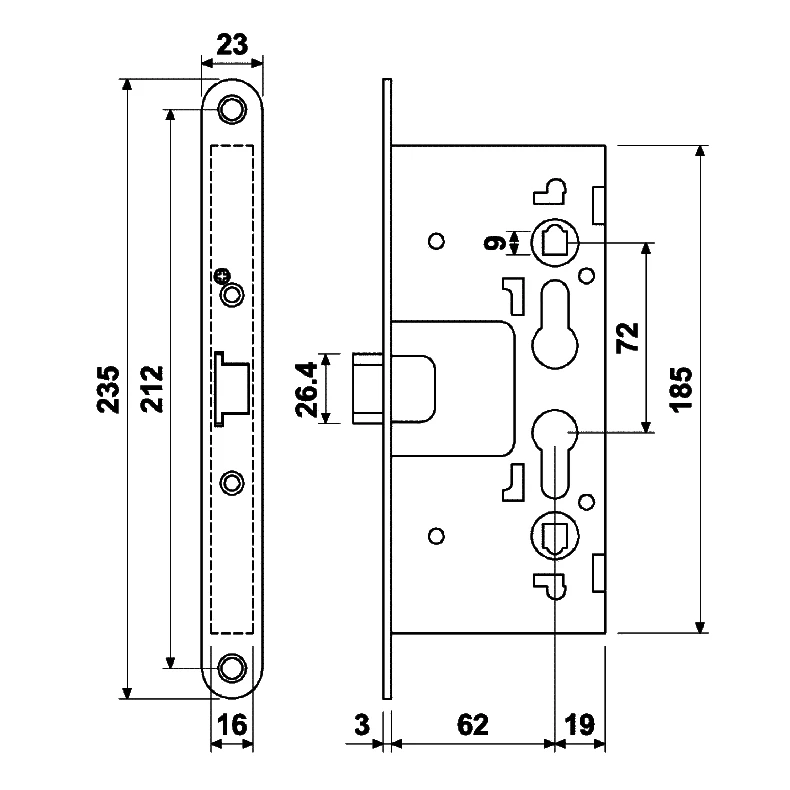

Spindle     Single
Screw Centres     212mm
Centres     72mm
Case Width     16mm
Case Height     185mm
Faceplate Width     23mm
Finish     Silver
Case Depth     81mm
Backset     65mm
Barcode     5055120787183
Manufacturer Reference     AS11608
Height     235mm
