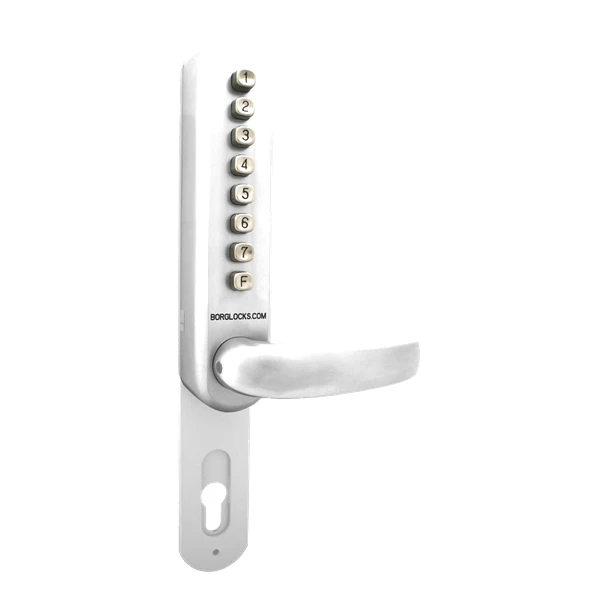

Borg Locks BL 6100 Narrow Stile Digital Lock For UPVC Doors

Borg Lock BL6100 digital push button lock with a narrow case that makes it suitable for UPVC doors.  The handle has a limited 70° handle rotation which operates well with UPVC mechanisms, the handles also incorporates a clutched keypad handle that stops force attack and offers no resistance until the correct code is entered.  The thin keypad has just 8 buttons, but has a unique system that allows a digit to be used twice.

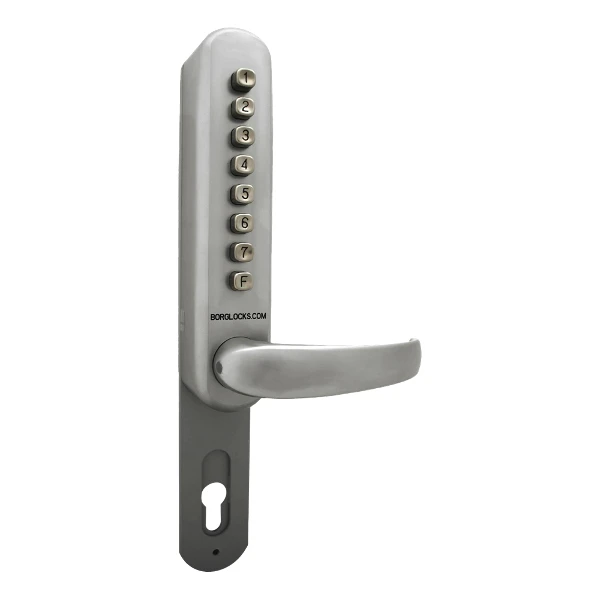

• White or stainless steel finish
• Adjustable Centres of 90mm or 92mm
• 70° handle rotation
• Can be fitted to internal and external doors
• For use with UPVC doors
• Narrow Housing
• 195mm Lock Case Fixing



Product Specifications
Guarantee	1 Year
Combination	2,000+
Holdback	No
Key Override	Yes (Cylinder Purchased Separately)
No. Buttons	8
No. Codes	1
Operation Inside	Lever Handle Free Exit
Passage Set	Yes
Weather Resistant	Yes
Barcode	5060275691223
Brand	Borg Locks
Handed	Reversible for Left and Right Hand Doors
Manufacturer Reference	BL6100
Operation Outside	Lever Handle On Entry Of Code
Type Of Door	UPVC And Aluminium



Product Dimensions
Centres	92mm and 90mm
Height	325mm
Screw Centres	195mm
Spindle	8mm
Width	45mm
