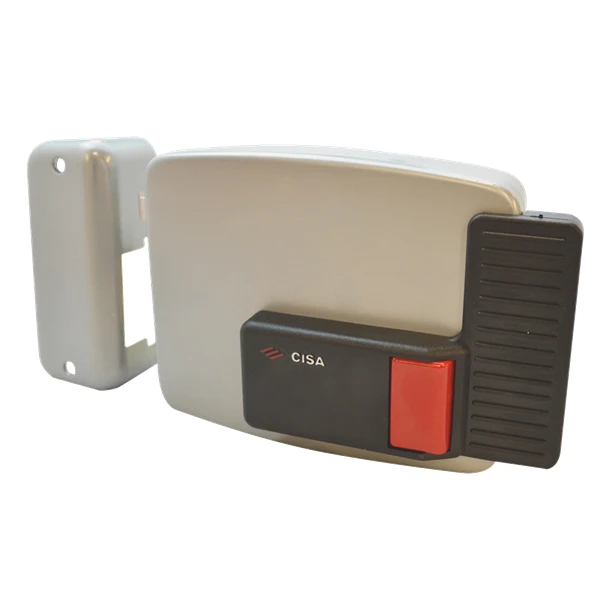

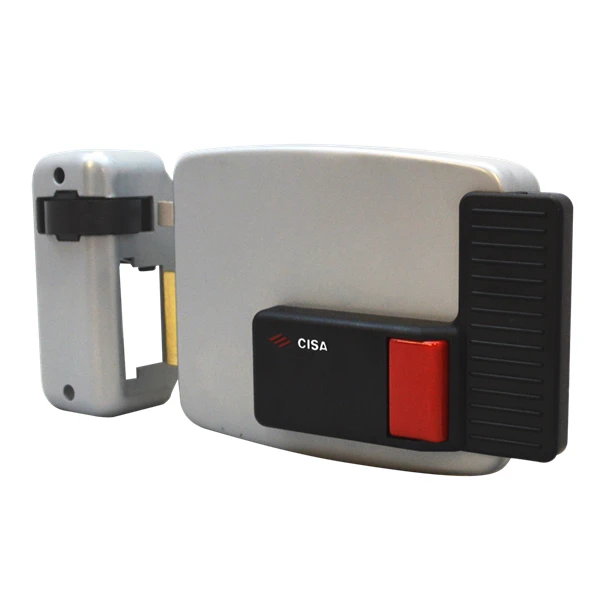

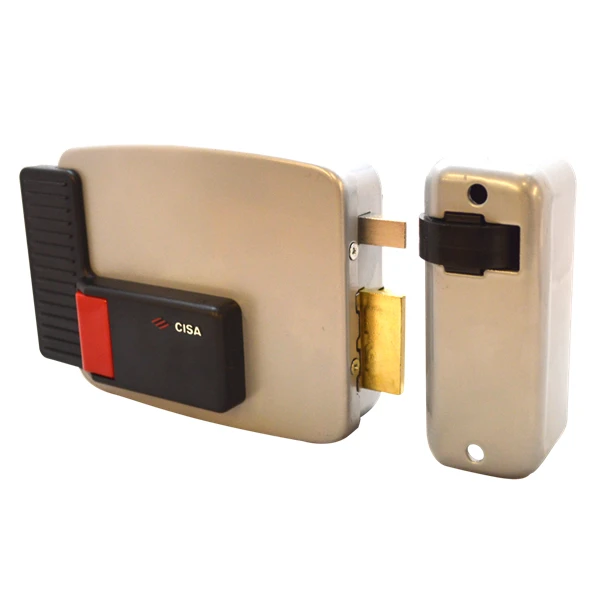

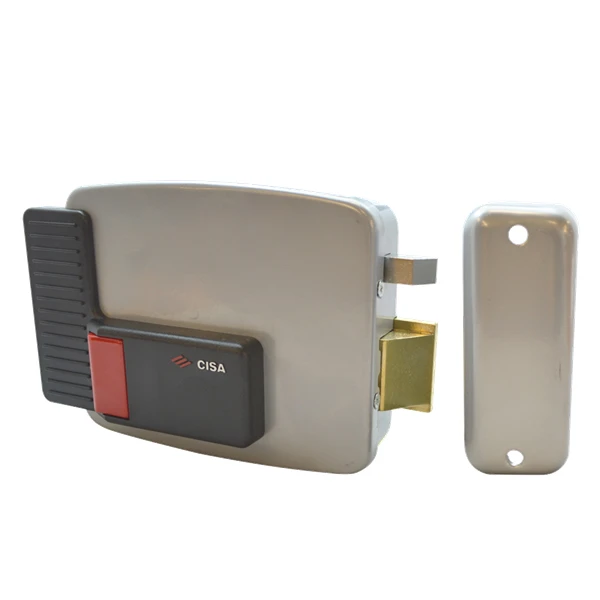

CISA 11610 Series Electric Rim Lock For Internal Wooden Doors

CISA 11610 Series Electric Rim Lock for Internal Wooden Doors, internal manual exit button, grey finish, fail locked

The CISA 11610 Electric Rim Lock is certified according to the European standard EN 14846:06: Security degree 3 (500 Kg lateral thrust and 200 Kg front load). Ideal for gate and doors operated by Access Control System. Lock can be released by access control system, internal exit button or external rim cylinder. Supplied with 3 keys for outside Rim Cylinder use, extra keys can be ordered if needed.

Fitting: Rim

Supplied with 3 Keys

Operation: Fail Locked

Voltage: 12V AC

Current: 1.6A

Backset: 60mm

Features

Steel case and striker, painted aluminium grey with dead-locking latch. 12 V ac CE Rated current 2,5A. This electric lock series is certified according to the European standard prEN 14846:06

Operation

Key to open from outside, internal manual exit button

Size

Lock Case 130 x 111 x 35mm
