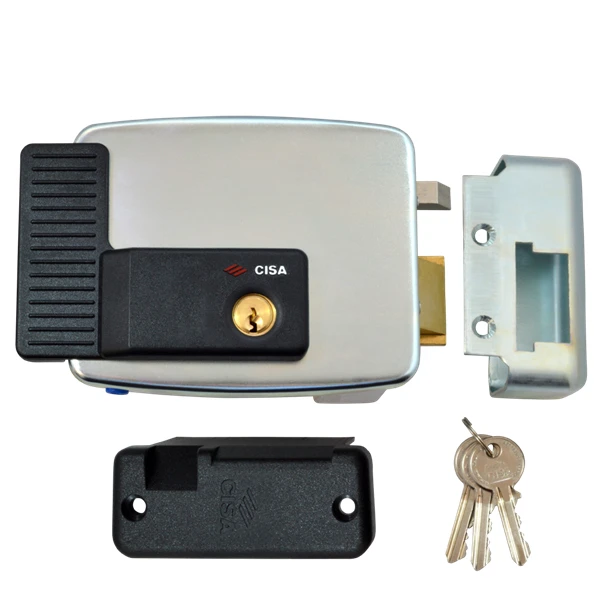

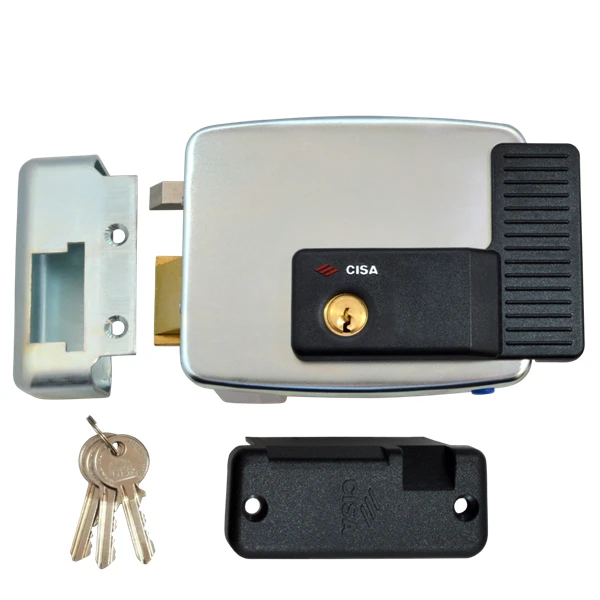

CISA 11921 Series Electric Rim Lock For External Metal Door / Gate

CISA 11921 Series Electric Rim Lock for External Metal Door / Gate with galvanised finish, exit by internal key

Electric Rim lock can be fitted to inward or outward opening doors, operation by Access Control System or key from either side. For use on external metal doors or gates. CISA electric lock series is certified according to the European standard prEN 14846:06:- Security degree 3 (500 Kg lateral thrust and 200 Kg front load). Comes supplied with 3 keys made by CISA.

Fitting: Rim

Operation: Fail Locked

Voltage: 12V AC

Current: 1.6A

Backset: 60mm



Features



Zinc-plated steel case and striker with dead-locking latch. 12 V ac CE current absorption 2,5 A. This electric lock series is certified according to the European standard prEN 14846:06.

Operation



Key to open from outside with internal key override to exit

Size

Lock Case: 130 x 111 x 35
