CISA 12011 Series Electric Mortice Lock For Wooden Doors

CISA 12011 Series Electric Mortice Lock for Wooden Doors, lock case only required Euro Cylinder to operate, remote operating of latch and deadbolt

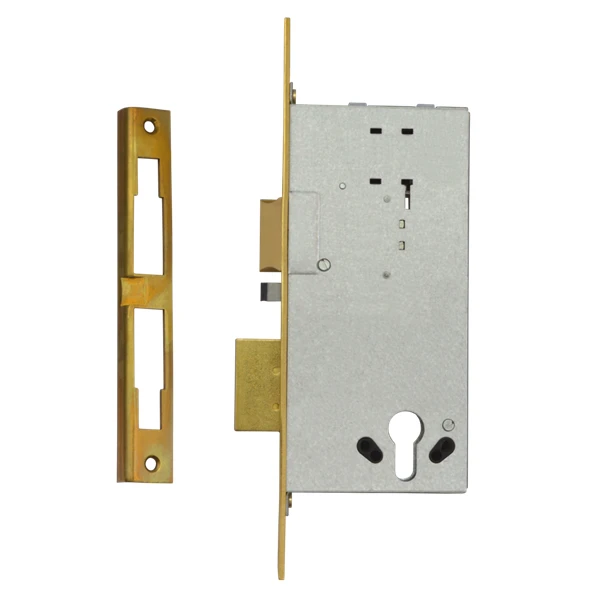

Mortice Lock from CISA for use with access control system.  CISA 12011 can be included with an access control system to allow remote operation of latch bolt and deadbolt.  Supplied in brass finish with fixing screws for lock case and cylinder, electric contacts and striking plate for door frame.  This electric mortice lock can also be operated by euro cylinder. Ideal for Timber Doors.

Fitting: Mortice

Operation: Fail Locked

Voltage: 12V AC

Current: 1.25A

Holding Force:

Backset: 60mm



Features



Zinc plated steel case with satin brass faceplate and striking plate. Reversible, electric latch, 12 V ac CE rated current 2,8 A. Supplied with Electric contacts, striking plate, lock and cylinder fixing screws.

Operation



Lock is operated by Euro cylinder from either side. Remote control of latch and deadbolt

Size

	Face Plate Height	Face Plate Width	Overall Width	Overall Depth	Body Height	Body Depth	Backset
	265	22	22	90	184	85	60
