ERA Digital Door Locks

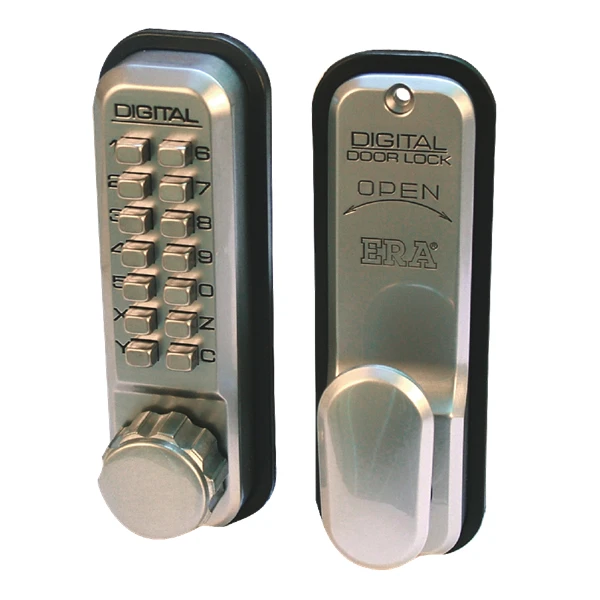

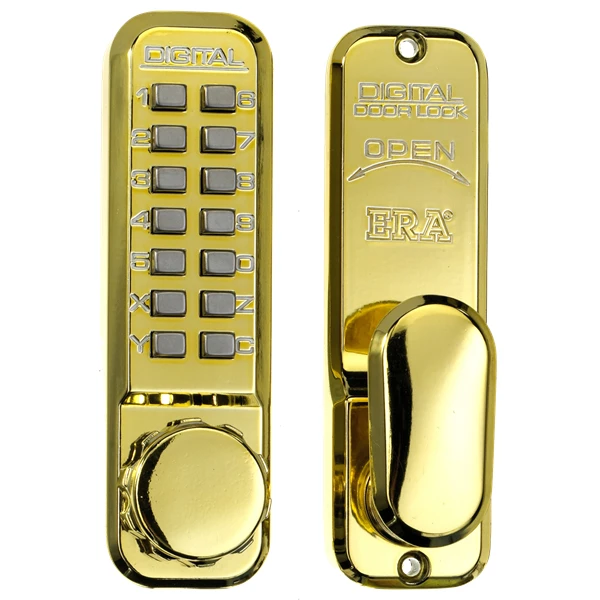

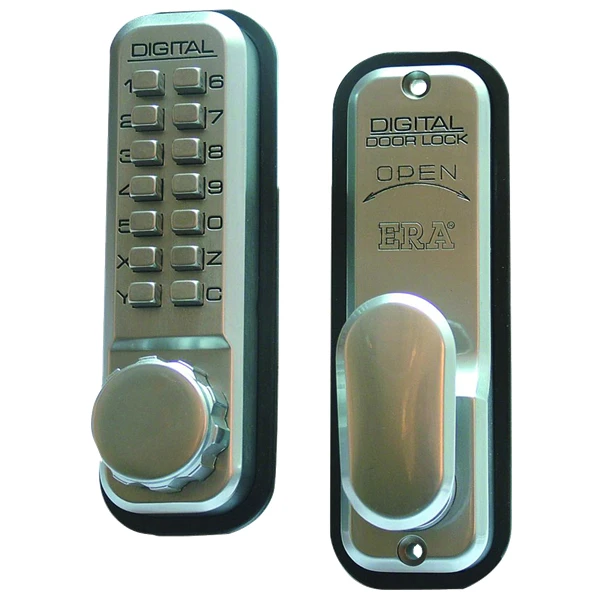

Digital door locks from ERA with a push button key pad to unlock the door available in a brass or satin finish with hold back facility available. Supplied deadlocking latch bolt is withdrawn by knob from outside after correct user code is entered or by thumb-turn from inside. This keyless door lock can be fitted to external or internal doors of thickness between 35mm-50mm.

Outside Operation: Turn knob is used to withdraw latch blot after use code is entered

Inside Operation: Turn handle is used to exit at any time

Possible Combinations: 5500

Code Length: 1-7 Digits

Holdback: Yes hold back available with 291 version

Latch: Standard 60mm tubular latch supplied

Weather Resistant: Yes can be used outside

Finish: Brass or Satin



Features

Easy to operate and program using keypad, Deadlocking latch bolt, Can be used inside or outside, Suitable for door between 35mm-50mmm thick, Passage function available with holdback feature on 291.

Operation

Code is entered from outside then knob is turned to open door. To exit, twist internal turn.

Size

Backset: 60mm

Case Height: 142mm

Case Width: 42mm
